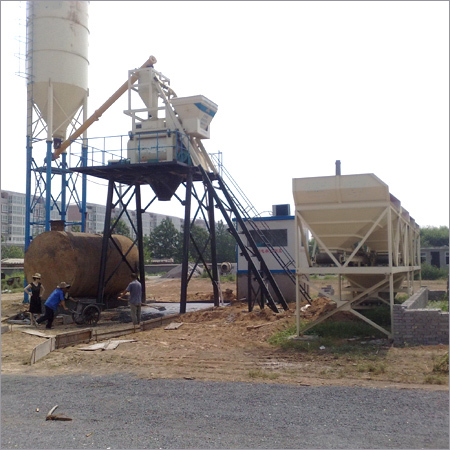

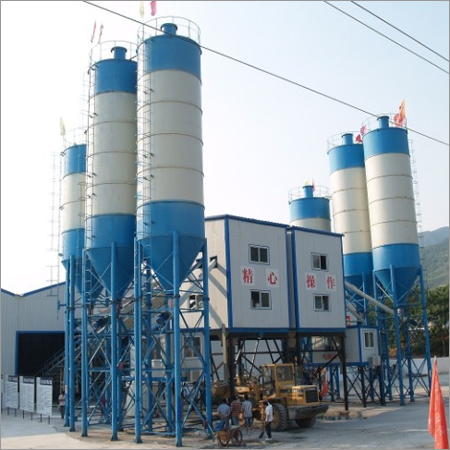

Concrete Batching Plant

Model

3JCBT25

Plant Capacity (m³/h)

25

Output per Batch (L)

500

Capacity (L)

800

Total Power (kw)

60

Cycling Period (s)

60

Max. Aggregate Size (mm)

60

No. of Aggregate

Max. 4

Discharge Height (mm)

3900

Weighing Scope and Precision

Aggregate (kg)

(0-1500) +2%

Cement (kg)

(0-300) +1%

Water (kg)

(0-150) +1%

Addictive (kg)

(0-40) +1%

Overall Dimension (mm)

15000X8000X12000

Mixer

Model

TSM500

Type of Mixer

Twin

No. of Mixer (unit)

1

Plant Capacity (m³/h)

≥25

Output per Batch (L)

500

Capacity (L)

800

Max. Aggregate Size (mm)

60

Cycling Period (s)

60

Power of Mixing Motor (kw)

18.5

Dimension (mm)

3030X2300X2680

Aggregate System

Batch

800

Volume (m³)

2×2

Capacity (m³/h )

48

Power (kw)

3X3

Weight (kg)

2300

Dimension (mm)

6400×1600×3000

2.2 Lift Hopper (unit)

1

Lifting Speed (m/s)

0.28

Power of Motor (kw)

5.5

Cement System

Cement Bin (unit)

2

Capacity (t)

2X50

Bin Diameter (mm)

2800

Screw Conveyor (unit)

2

Diameter (mm)

219

Length (mm)

9

Additive System

Bin Capacity (m³)

1

Pneumatic Valve (mm)

Φ50

Power Of Pump (kw)

3

Water System

Power of Motor (kw)

3

Butterfly Valve (mm)

Φ150

Capacity (m³/h)

50

Air System

Air Compressor (unit)

1

Power (kw)

5.5

Pressure (Mpa)

0.7

Capacity (m³/h)

0.67

Weighing System

Aggregate Scale (unit)

1

Capacity (kg)

1500

Precision

+1%

Cement Scale (unit)

1

Capacity (kg)

300

Precision

+1%

Water Scale (unit)

1

Capacity (kg)

150

Precision

+1%

Additive Scale (unit)

1

Capacity (kg)

40

Precision

+1%

Control System

PLC COM and CON (unit)

1
